Please be mindful of the following limitations when working with the microdata API.
Limitations for Get Queries
Queries for raw microdata with more than a few variables may not work unless you also restrict your geography or universe. This is because queries for raw microdata can request thousands or millions of records. When the data request is too large, it can cause the request to fail or time out.
If you are experiencing this issue, we recommend breaking up your API query into multiple API queries that only use a few variables at a time, or download the full set of data from the file transfer protocol (FTP) site for your dataset.
Limitations for Tabulate Queries
Queries for custom statistics may not satisfy all data needs due to some functionality limitations, challenges with the way variables are defined in a survey, and known defects.
If you have questions about the microdata API, please email us at cedsci.feedback@census.gov
The microdata API offers the ability to recode variables to create custom categories that your statistics represent, rather than using the most detailed categories that are provided by default. This appendix walks through the process on how to recode variables. For a detailed explanation of why you would want to recode variables, please see the Recoding Variables section of this guide
Please be aware that the process to recode variables in the microdata API is complex and is subject to change in the future. We are considering ways to simplify the process to recode variables in the microdata API. If we implement a simplified syntax in the future, it will break the current way of recoding variables and users will need to update their microdata API queries to the new syntax for all of their queries that use recoded variables. To stay informed of these important API changes, please sign up for Census Data API email updates.
The microdata API allows you to recode variables using the format below. The parts of the example in bold will change depending on the variable and values you would like to use in your recode. The remaining characters are required parts of the parameter that you must include every time you recode a variable.
Recode Format
&recode+NEW_VARIABLE_ NAME={"b":"ORIGINAL_VARIABLE ", "d":[[CATEGORY 1],[CATEGORY 2]]}
In this structure:
Example: Recoding AGEP to provide data for people age 0-11 and people age 12 and over:
&recode+AGEGROUPS={"b":"AGEP", "d":[[0,1,2,3,4,5,6,7,8,9,10,11],[{"mn":12,"mx":99}]]}
Individual values or ranges within a square bracket tell the API which values to include in a category.
Example: [0,1,2,3,4,5,6,7,8,9,10,11],[{"mn":12,"mx":99}]
Within each set of square brackets, you must:
You may define values in a few different ways if you are working with numerical values from integer or float variables. For example, you could create a category for people age 0-11 by:
When defining categories for string variables, list out each value individually. String variables may contain a mixture of alphanumerical characters, which means it is not possible to define a logical range.
You must use straight double quotation marks " to enclose all non-numerical text that appears within the curly brackets in the recode parameter.

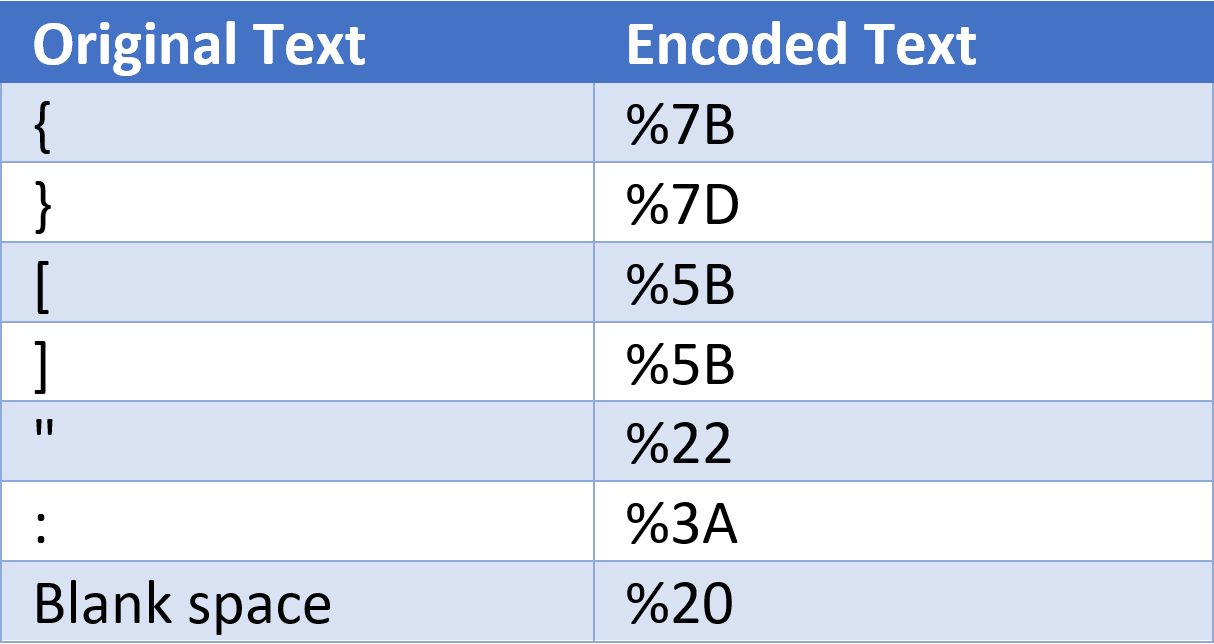

Once you recode the variable, you will need to encode the text that appears after the equals sign in the recode parameter. This is needed because some of the special characters such as the brackets and quotes cannot be read by the API. Encoding this part of the API query will replace the special characters with a set of standard characters that the API is able to read to represent the special characters.
Original Text:
&recode+AGEGROUPS={"b":"AGEP", "d":[[0,1,2,3,4,5,6,7,8,9,10,11],[{"mn":12,"mx":99}]]}
Encoded Text: &recode+AGEGROUPS=%7B%22b%22%3A%22AGEP%22%2C%20%22d%22%3A%5B%5B0%2C1%2C2%2C3%2C4%2C5%2C6%2C7%2C8%2C9%2C10%2C11%5D%2C%5B%7B%22mn%22%3A12%2C%22mx%22%3A99%7D%5D%5D%7D
![]() |
Please be sure to only encode the portion of the recode that appears after the equals sign in the recode parameter. This is the part within and including the curly brackets. If you encode other additional characters, the API query will not work. |
The last step is to add a recoded variable to a tabulate query. Simply add the properly encoded recode parameter to your microdata API query, and the recoded variable to the columns or rows using the new variable name.
For example, suppose you want to look at health insurance status for people age 0-11 compared to people age 12 and over. You will add this to the API query:
Notice this includes:
The results provide a custom table based on the 2019 ACS 1-Year PUMS. The first row of data tells us there were an estimated 2,397,369 children age 0-11 without health insurance, and 45,154,935 children age 0-11 with health insurance. The second row of data provides these results for people 12 and over.
[[{"HICOV": "2"}, {"HICOV": "1"},"AGEGROUPS"],
[2397369,45154935,"1"],
[28605927,252081292,"2"]]
Recode JWMNP to get data for travel time to work broken out in 8 categories: 0 (not a worker or work from home), 1-14 min, 15-29 min, 30-44 min, 45-59 min, 60-74 min, 75-89 min, or 90+ min
Original Recode Parameter
&recode+COMMUTE={"b":"JWMNP","d":[[00],[{"mn":1,"mx":14}],[{"mn":15,"mx":29}],[{"mn":30,"mx":44}],[{"mn":45,"mx":59}],[{"mn":60,"mx":74}],[{"mn":75,"mx":89}],[{"mn":90,"mx":200}]]}
Encoded Recode Parameter
&recode+COMMUTE=%7B%22b%22%3A%22JWMNP%22%2C%22d%22%3A%5B%5B00%5D%2C%5B%7B%22mn%22%3A1%2C%22mx%22%3A14%7D%5D%2C%5B%7B%22mn%22%3A15%2C%22mx%22%3A29%7D%5D%2C%5B%7B%22mn%22%3A30%2C%22mx%22%3A44%7D%5D%2C%5B%7B%22mn%22%3A45%2C%22mx%22%3A59%7D%5D%2C%5B%7B%22mn%22%3A60%2C%22mx%22%3A74%7D%5D%2C%5B%7B%22mn%22%3A75%2C%22mx%22%3A89%7D%5D%2C%5B%7B%22mn%22%3A90%2C%22mx%22%3A200%7D%5D%5D%7D
API Query
Output
Results provide the total number of males and females in each of the 8 commuting categories. Specifically, the 8 COMMUTE values represent each of the categories you recoded, and they are ordered the same way you specified them. For example, COMMUTE=1 refers to people with a JWMNP value of 0 (not a worker or work from home) because it was the first category defined in the recode. COMMUTE=2 refers to people who have a 1-14 min travel time to work because it was the second category defined in the recode.
[{"SEX": "1"}, {"SEX": "2"},"COMMUTE"],
[83231328,97001692,"1"],
[18041733,18669298,"2"],
[27137539,25546648,"3"],
[17133339,14231984,"4"],
[7181282,5499790,"5"],
[5010477,3402857,"6"],
[901051,597099,"7"],
[2957523,1695883,"8"]]
The second row of the data shows that based on the 2019 ACS 1-Year PUMS, there were approximately 18,041,733 men and 18,669,298 women with commute times of 1-14 min in the United States.
Recode poverty by age from the 2020 CPS ASEC microdata:
Original Recode Parameters
&recode+AGEGROUP={"b":"A_AGE","d":[[{"mn":0,"mx":61}],[{"mn":62,"mx":85}]]}
&recode+POVERTY={"b":"PERLIS","d":[[1],[2,3,4]]}
Encoded Recode Parameters
&recode+AGEGROUP=%7B%22b%22%3A%22A_AGE%22%2C%22d%22%3A%5B%5B%7B%22mn%22%3A0%2C%22mx%22%3A61%7D%5D%2C%5B%7B%22mn%22%3A62%2C%22mx%22%3A85%7D%5D%5D%7D
&recode+POVERTY=%7B%22b%22%3A%22PERLIS%22%2C%22d%22%3A%5B%5B1%5D%2C%5B2%2C3%2C4%5D%5D%7D
API Query
Output
Results provide the total number of people in poverty and the total number of people not in poverty across both age groups. In this output, the 2 AGEROUP values represent each of the categories you recoded, and they are ordered the same way you specified them. For example, AGEGROUP=1 refers to people age 0-61 because it was the first category defined in the recode. AGEGROUP=2 refers to people age 62 and over because it was the second category defined in the recode.
[[{"POVERTY": "1"}, {"POVERTY": "2"},"AGEGROUP"],
[27942761,229606212,"1"],
[6041575,61163321,"2"]]
The first row of the data show that based on the 2020 CPS ASEC, there were approximately 27,942,761 people age 0-61 in poverty and 229,606,212 people age 0-61 not in poverty in the United States.
Recode hourly earnings from the December 2020 CPS Basic Monthly microdata:
Original Recode Parameter
&recode+HOURLYWAGE={"b":"PTERNHLY","d":[[{"mn":0.01,"mx":7.24}],[{"mn":7.25,"mx":7.25}],[{"mn":7.26,"mx":99.99}]]}
![]() |
Remember to add a leading zero before decimal values between -1 and 1, such as 0.01. |
Encoded Recode Parameter
&recode+HOURLYWAGE=%7B%22b%22%3A%22PTERNHLY%22%2C%22d%22%3A%5B%5B%7B%22mn%22%3A0.01%2C%22mx%22%3A7.24%7D%5D%2C%5B%7B%22mn%22%3A7.25%2C%22mx%22%3A7.25%7D%5D%2C%5B%7B%22mn%22%3A7.26%2C%22mx%22%3A99.99%7D%5D%5D%7D
API Query
Output
Results provide the total number of people in each of the 3 hourly wage categories: $0.01-$7.24 per hour, $7.25 per hour, and above $7.25 per hour. In this output, the 3 HOURLYWAGE values represent each of the categories you recoded, and they are ordered the same way you specified them. For example, HOURLYWAGE=1 refers to people with an hourly wage of $0.01-$7.24 per hour because it was the first category defined in the recode.
[[{"HOURLYWAGE": "1"}, {"HOURLYWAGE": "2"}, {"HOURLYWAGE": "3"}],
[656108,152949,76224331]]
The first row of the data shows that based on the December 2020 CPS Basic Monthly, there were approximately 656,108 people with an hourly wage of $0.01-$7.24, 152,949 people with an hourly wage of $7.25, and 76,224,331 people with an hourly wage above $7.25.
